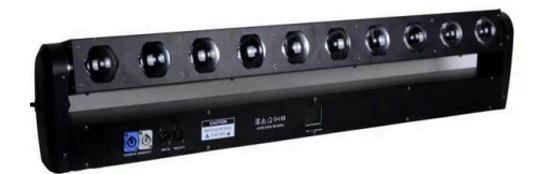

PL-MB-10
The PL-MB-10 Moving Head Bar is a powerful 10×40W RGBW linear fixture designed for high-end stage, touring, and broadcast applications
| Model | PL-MB-10 |
| Device Type | LED Moving Head Bar- LED Bar Lights |
- Description
- Specification
- Download
Description
Overview
The PL-MB-10 Moving Head Bar is a powerful 10×40W RGBW linear fixture designed for high-end stage, touring, and broadcast applications. With exceptional color accuracy (CRI 96), tight 3.8° beam output, smooth dimming, flicker-free performance up to 25kHz PWM, and robust movement capability, it delivers precise aerial effects and dynamic visual textures for any professional lighting environment. Its long LED lifetime, stable color consistency, and advanced DMX control modes make it an ideal choice for concerts, TV studios, events, and fixed installations.
Key Features
- 10×40W High-Power RGBW LEDs for intense output and saturated colors
- High CRI ≥ 96 for premium color fidelity in cameras and live performance
- CCT Consistency ±100K ensuring uniform color across multiple units
- Narrow 3.8° beam angle for sharp aerial effects
- Wide tilt range 0°–245° for dynamic movement
- Flicker-free operation (PWM ≥ 2kHz – 25kHz) optimized for TV and film
- Smooth 1–100% linear dimming
- Dual DMX modes (11 / 47 channels) with master/slave & auto programs
- Long LED lifetime ≥ 50,000 hours
- High reliability with MTBF ≥ 20,000 hours
- Compact, lightweight linear housing for easy rigging
| Item | Specification |
| LED Type | 10 pcs × 40W RGBW 4-in-1 LEDs |
| Color Rendering Index (CRI) | CRI ≥ 96 |
| CCT Consistency | ±100K |
| PWM Frequency | 2kHz – 25kHz (Flicker-free) |
| Beam Angle | 3.8° |
| LED Lifetime | ≥ 50,000 hours |
| MTBF | ≥ 20,000 hours |
| Dimmer | 1–100% linear electronic dimming |
| Strobe | High-speed electronic strobe |
| Optics | High-precision beam lens system |
| Tilt Range | 0° – 245° |
| Tilt Resolution | 16-bit fine control |
| Protocol | DMX512 / 1990 Standard |
| Control Modes | DMX / Auto / Master-Slave |
| DMX Channels | 11 CH / 47 CH |
| Display | Digital LED display |
| Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 400W |
| Power Connection | Standard PowerCon In/Out |
| Housing | High-strength aluminum |
| IP Rating | IP20 |
| Cooling System | Intelligent air-cooling system |
| Dimensions (L × W × H) | 1100 × 90 × 230 mm |
| Weight | 13.6 kg |
